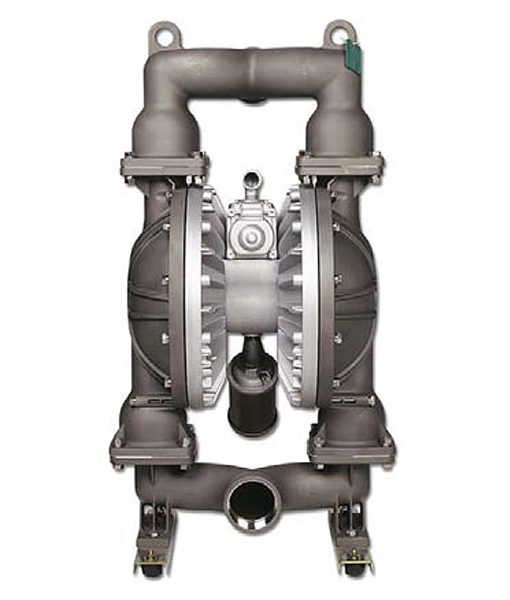

YAMADA_NDP-80 Iron
NDP-80 Nomenclature
YAMADA_NDP-80 Iron
NDP-80 Nomenclature

Pump Repair Kits – Liquid Side for YAMADA® NDP-80 Models

Price range: $823.84 through $4,421.68

LIQUID END KITS For Yamada NDP-80 pumps with Polypropylene, Aluminum, Cast Iron, or Stainless Steel body construction.

K80-PC, KIT FOR NDP-80 BPC includes:

771857 Diaphragm 80C
770559 Ball 80C
640143 O’Ring
640080 O’Ring

K80-PN, KIT FOR NDP-80 BPN includes:

771704 Diaphragm 80N
770587 Ball 80N
640143 O’Ring
640080 O’Ring

K80-PE, KIT FOR NDP-80 BPE includes:

771858 Diaphragm 80E
770596 Ball 80E
685443 O’Ring
684125 O’Ring

K80-PH, KIT FOR NDP-80 BPH includes:

771705 Diaphragm 80H
773144 Ball 80H
640143 O’Ring
640080 O’Ring

K80-PH-T1, KIT FOR NDP-80 BPH-T1 includes:

771705 Diaphragm 80H
770694 Ball 80T
643143 O’Ring
643080 O’Ring

K80-PS, KIT FOR NDP-80 BPS includes:

771977 Diaphragm 80TPO
773174 Ball 80TPO
685443 O’Ring
684125 O’Ring

K80-PS-T1, KIT FOR NDP-80 BPS-T1 includes:

771977 Diaphragm 80TPO
770694 Ball 80T
643143 O’Ring
643080 O’Ring

K80-PV, KIT FOR NDP-80 BPV includes:

771801 Diaphragm 80V
770605 Ball 80V
642143 O’Ring
642080 O’Ring

K80-PT, KIT FOR NDP-80 BPT includes:

770934 Diaphragm 80T
770694 Ball 80T
643080 O’Ring
643143 O’Ring
643015 O’Ring

K80-MC, KIT FOR NDP-80 BAC, BFC, & BSC includes:

771857 Diaphragm 80C
770559 Ball 80C
640078 O’Ring
771958 Valve Seat 80C

K80-MN, KIT FOR NDP-80 BAN, BFN, & BSN includes:

771704 Diaphragm 80N
770587 Ball 80N
640078 O’Ring
771996 Valve Seat 80N

K80-ME, KIT FOR NDP-80 BAE, BFE, & BSE includes:

771858 Diaphragm 80E
770596 Ball 80E
684124 O’Ring
771999 Valve Seat 80E

K80-MH, KIT FOR NDP-80 BAH, BFH, & BSH includes:

771705 Diaphragm 80H
773144 Ball 80H
640078 O’Ring
771795 Valve Seat 80H

K80-MH-T, KIT FOR NDP-80 BAH-T, BFH-T, & BSH-T includes:

771705 Diaphragm 80H
770694 Ball 80T
640078 O’Ring
771795 Valve Seat 80H

K80-MS, KIT FOR NDP-80 BAS, BFS, & BSS includes:

771977 Diaphragm 80TPO
773174 Ball 80TPO
684124 O’Ring
772005 Valve Seat 80TPO

K80-MS-T, KIT FOR NDP-80 BAS-T, BFS-T, & BSS-T includes:

771977 Diaphragm 80TPO
770694 Ball 80T
684124 O’Ring
772005 Valve Seat 80TPO

K80-MV, KIT FOR NDP-80 BAV, BFV, & BSV includes:

771801 Diaphragm 80V
770605 Ball 80V
642078 O’Ring
771998 Valve Seat 80V

K80-MT, KIT FOR NDP-80 BAT, BFT, & BST includes:

770934 Diaphragm 80T
770694 Ball 80T
643078 O Ring
643145 O’Ring
643015 O Ring
